Product

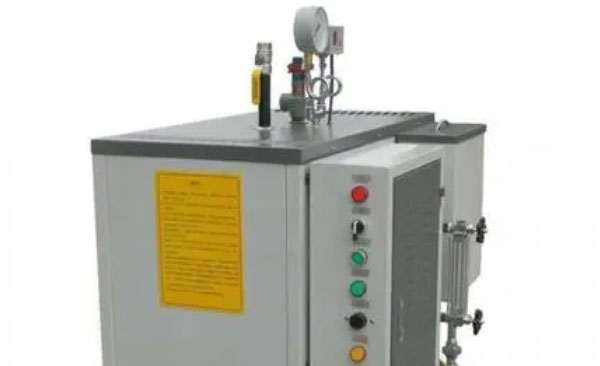

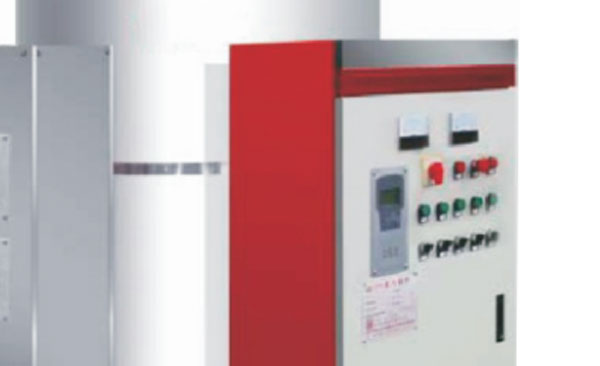

The LDR electric heating vertical boiler is heated by electricity.Itis a pressure vessel equipment which converts electric heat intoheat energy and then produce hot water or high temperaturesteam.It is mainly composed of boiler body,electric control boxand control system,running quietly,noise-free andclean.Especially using electricity (one of the three clean energysources of the country)to heat,which conforms to the policyrequirements of environmental protection and also caters tocustomers psychology.
All electrical components of LDR type electric heating boiler haveCE and CCC certification marks,and some parts are alsoadopted intemational brands such as Siemens,ABB etc.,whichgreatly improves the quality and service life of the boiler and hasbeen trusted and recognized by the majority of customers.
Rated Steam Capacity:0.1t/h 0.2t/h 0.3t/h 0.5t/h 0.7t/h 1t/h
Rated Heat Power:1.2KW / 2.4KW / 3.5KW / 4.8KW / 7KW
Steam Boiler
| Model Unit | Rated Steam Capacity (t/h) | Rated Working Pressure (MPa) | Saturated Steam Temperature(℃) | Heat Efficiency (%) | Design Fuel | Max Transport Weight (Kg) | Max Transport Dimension L*W*H (mm) |
| LDR0.1-0.4 | 0.1 | 0.4/0.7 | 151/171 | ≥98% | Electricity | 150 | ?600*1200 |
| LDR0.2-0.4 | 0.2 | 430 | ?800*1400 | ||||
| LDR0.3-0.7 | 0.3 | 720 | ?1000*1500 | ||||
| LDR0.5-0.7 | 0.5 | 1100 | ?1100*1600 | ||||
| LDR0.7-0.7 | 0.7 | 1400 | ?1250*1750 | ||||
| LDR1.0-0.7 | 1 | 1600 | ?1300*1800 |
Atmospheric Pressure Hot Water Boiler
| Model Unit | Rated Heat Power (MW) | Rated Working Pressure (MPa) | Rated Outlet/Return Temperature(℃) | Heat Efficiency (%) | Design Fuel | Max Transport Weight (Kg) | Max Transport Dimension L*W*H (mm) |
| CLDR0.12-85/60 | 0.12 | Atmospheric pressure | 85/60 | ≥98% | Electricity | 480 | ?900*1450 |
| CLDR0.24-85/60 | 0.24 | 720 | ?1000*1500 | ||||
| CLDR0.35-85/60 | 0.35 | 1100 | ?1100*1600 | ||||
| CLDR0.48-85/60 | 0.48 | 1400 | ?1250*1750 | ||||
| CLDR0.7-85/60 | 0.7 | 1600 | ?1300*1800 |
With 40 years of factory history,660,000 square meters of factory area,580 million total assets,500 +service team etc.hengxin Boiler guarantees the real interests of customersthrough national safety and quality inspection institutions at all levels.
With 336 production equipments and more than 300 production models,hengxin devotes itself to scientific and technological innovation and iscommitted to providing customers with the most energy-saving and efficientboiler equipment,and each boiler is directly exported by hengxin manufacturers,with higher cost-effective performance in the boiler market.
hengxin Boiler adopts the latest intelligent boiler cloud platform system,realizes the overall control of the boiler operation state,and truly realizes worry-free ideal state.
hengxin Boiler,as a high-tech boiler manufacturer,is dedicated to making boilerswith services of R&D innovation,design customization,production specialization,sales refinement,installation standardization,renovation proficiency,EPC project comprehensiveness.
Technical consultation in 30 minutes,clear plan in 2 hours,dispatchof engineers at home and abroad in 24-72 hours,free maintenancewithin 12 months since shipment.
Some products are available in stock.Boilers under 15 tons can be delivered in 15 days,boilers with 15-25 tons can be delivered in 20 days andboilers with 25 tons or more can be delivered in 35 days.
