Product

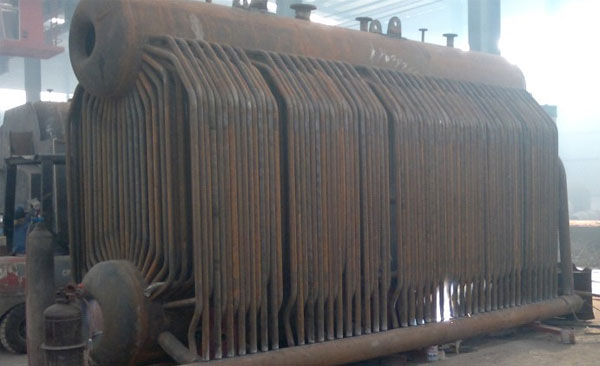

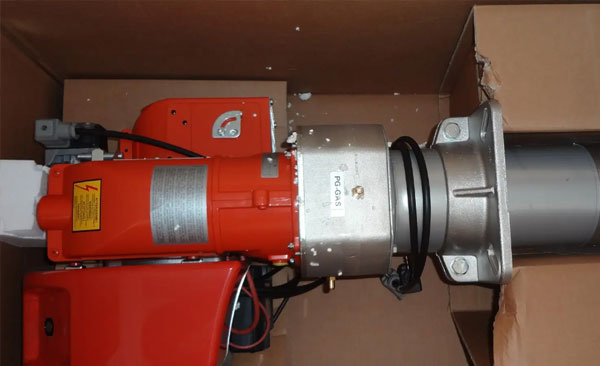

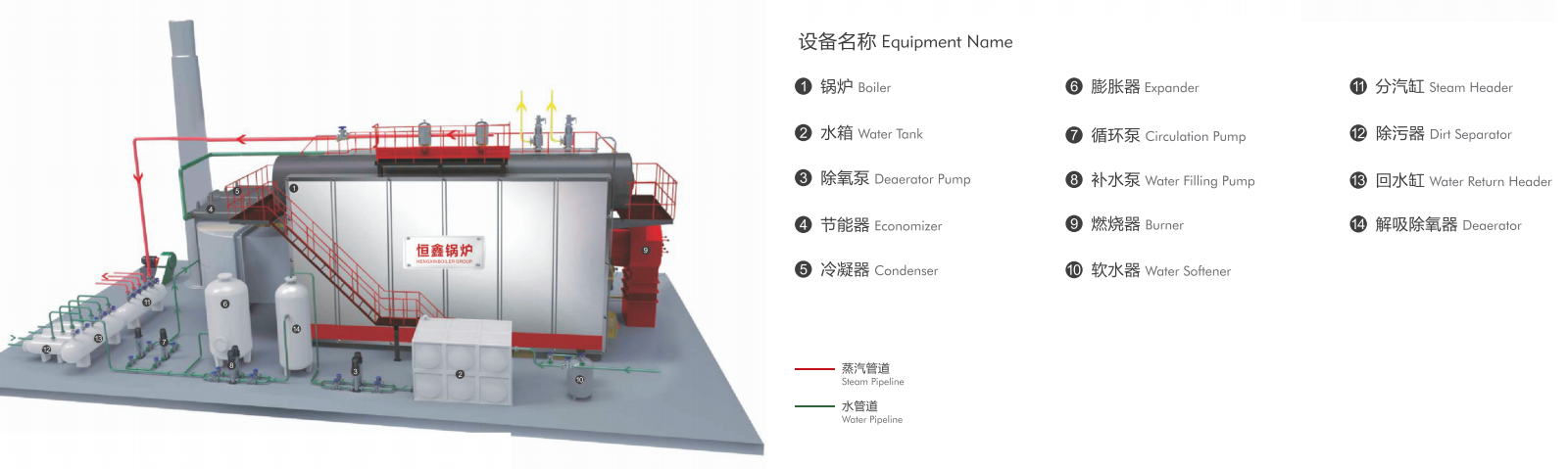

SZS gas/oil double-drum horizontal type chamber combustionboiler,which consists of upper and lower drums,membranewater wall,burner,superheater,convection pipe bundle,condenser and dirt separator,etc.Its furnace water wall andconvection flue adopts membrane wall structure,saving refractory bricks.In addition,with the advantages ofenergy-saving,high efficient,environmentally friendly,shortinstallation cycle,simple operation and perfect protection,etc,t can meet the needs of industrial heating and small powerstation supply heating,now becoming one popular boiler type onthe market.

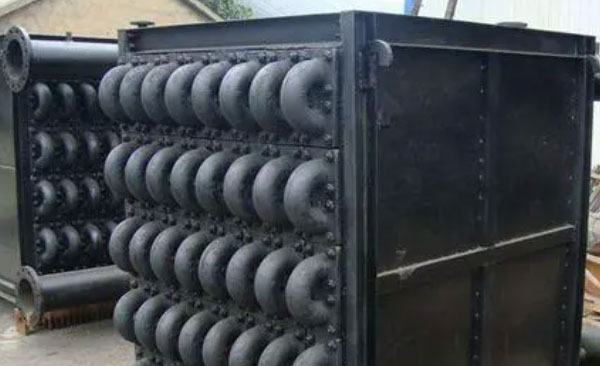

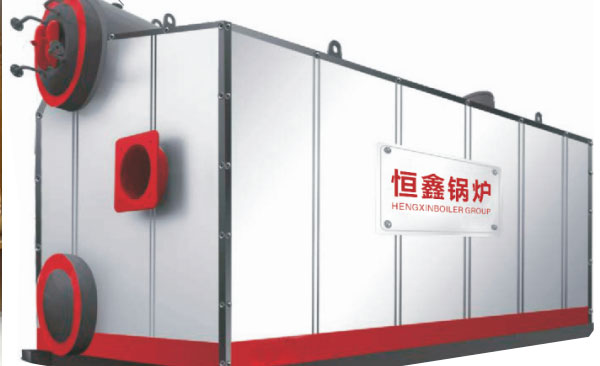

It is quick-assembled or bulk water tube boiler with convectiontube bundle on the left and chamber on the right.During theheating process,the flue gas which is produced by the chambercombustion,enters to burning chamber and convection pipebundle from smoke outlet of end of furnace,then turns to theeconomizer and condenser which made by finned tubes,andfinally discharges into the air through he flue and chimney.Theapplication of the economizer and condenser reduces theexhaust gas temperature and improves the thermal efficiency,reducing fuel consumption.
| Model Unit | SZS6-1.25-YQ | SZS8-1.25-YQ | SZS10-1.25-YQ | SZS20-1.25-YQ | SZS30-1.25-YQ | SZS40-1.25-YQ | SZS50-1.25-YQ | SZS65-1.25-YQ | SZS75-1.25-YQ | SZS100-1.25-YQ | SZS110-1.25-YQ | SZS150-1.25-YQ |
| Rated Steam Capacity (t/h) | 6 | 8 | 10 | 20 | 30 | 40 | 50 | 65 | 75 | 100 | 110 | 150 |
| Rated Working Pressure (MPa) | 1.25/1.6/2.5 | |||||||||||
| Saturated Steam Temperature(℃) | 194/204/225 | |||||||||||
| Heat efficiency (% ) | 93.3-97 | |||||||||||
| Design Fuel | Natural Gas,Light Oil,Heavy Oil etc. | |||||||||||
| Max Transport Weight (Kg) | 32000 | 32000 | 32000 | 40000 | 40000 | 40000 | 51000 | 68200 | 80500 | / | / | / |
| Max Transport Dimension L*W*H (mm) | 7800*2400*2400 | 7800*2400*2400 | 7800*2400*2400 | 8000*3600*4500 | 8000*3600*4500 | 8000*3600*4500 | 8900*3900*4000 | 10500*4300*4320 | 12330*4400*4530 | / | / | / |
With 40 years of factory history,660,000 square meters of factory area,580 million total assets,500 +service team etc.hengxin Boiler guarantees the real interests of customersthrough national safety and quality inspection institutions at all levels.
With 336 production equipments and more than 300 production models,hengxin devotes itself to scientific and technological innovation and iscommitted to providing customers with the most energy-saving and efficientboiler equipment,and each boiler is directly exported by hengxin manufacturers,with higher cost-effective performance in the boiler market.

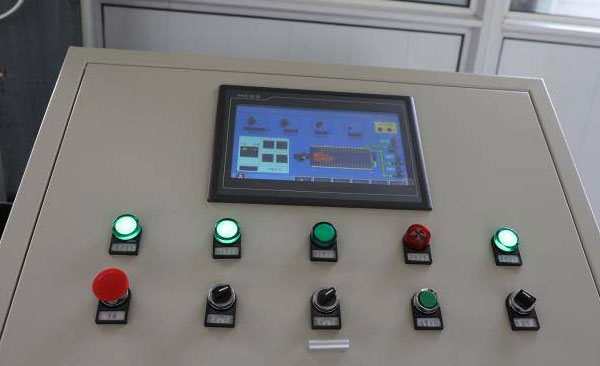

hengxin Boiler adopts the latest intelligent boiler cloud platform system,realizes the overall control of the boiler operation state,and truly realizes worry-free ideal state.
hengxin Boiler,as a high-tech boiler manufacturer,is dedicated to making boilerswith services of R&D innovation,design customization,production specialization,sales refinement,installation standardization,renovation proficiency,EPC project comprehensiveness.
Technical consultation in 30 minutes,clear plan in 2 hours,dispatchof engineers at home and abroad in 24-72 hours,free maintenancewithin 12 months since shipment.
Some products are available in stock.Boilers under 15 tons can be delivered in 15 days,boilers with 15-25 tons can be delivered in 20 days andboilers with 25 tons or more can be delivered in 35 days.
