Product

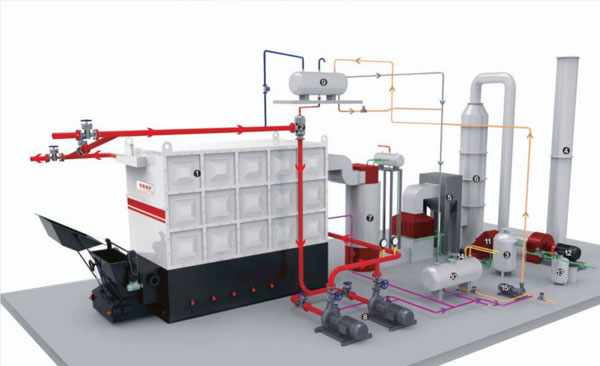

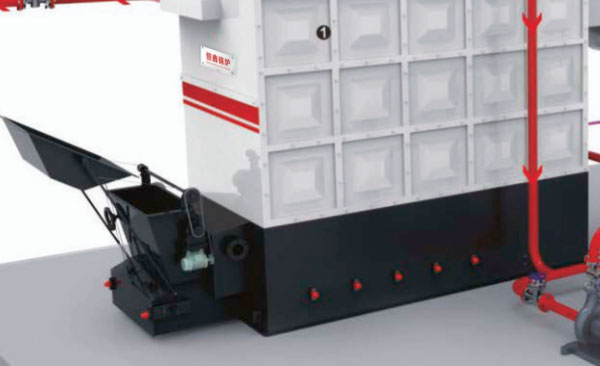

YLW series biomass thermal oil heater is a forced circulationchain grate boiler developed by hengxin boiler Group.It is anew type of heating equipment using enwironmental energy-biomass as fuel and heat-conducting oil as medium.The heatingsurfoce and the rear are convection surfaces.During operation,the boiler can be accurately temperature adjusted according tooctual requirements,which can meet different requirements ofcustomers.It is even better that the boiler has a completeoperation control system and safety monitoring device,makingthe operation of the boiler simpler and more convenient.Evenbetter,the boiler's various emission indicators are lower than thenational "Boiler Air Pollutant Emission Standard"regulations,andthe operating cost is 5%-10%less than that of coal combustion.YLW series thermal oil heater will not produce corrosion,dirt orflue gos in the process of operation.In addition,it has thecharacteristics of good heat transfer performance,convenientand quick maintenance and high thermal eficiency.Therefore,ithas become not only a new type of boiler that meets the policyrequirements,but also meet the needs of customers.
YLW Biomass (coal) Fired Thermal Fluid Heater
| Model Unit | Rated Heat Power (*10kcal/h) | Rated Working Pressure (MPa) | Max Working Temperature(℃) | Thermal Efficiency (%) | Medium Circulation Rate(m3/h) | Heating Area (㎡) | Design Fuel | Medium Volume In Furnace (m3) | Max Transport Weight (Kg) | Max Transport Dimension L*W*H (mm) |
| YLW-1400SCIII | 120 | 1.0 | 320 | ≥83% | 80 | 104 | Biomass Fuel | 1.2 | 18000 | 4600*2300*3200 |
| YLW-1900SCIII | 160 | 115 | 125 | 1.6 | 20000 | 4670*2320*2880 | ||||
| YLW-2100SCIII | 180 | 155 | 145 | 1.9 | 25000 | 4700*2680*3300 | ||||
| YLW-2400SCIII | 200 | 188 | 163 | 2.4 | 26500 | 4900*2700*3300 | ||||
| YLW-3000SCIII | 250 | 200 | 188 | 2.9 | 34000 | 5900*2700*3550 | ||||
| YLW-3500SCIII | 300 | 200 | 216 | 3.3 | 38000 | 7500*2900*1700 | ||||
| YLW-4200SCIII | 360 | 225 | 280 | 3.5 | 40000 | 7700*2900*2200 | ||||
| YLW-5000SCIII | 400 | 260 | 310 | 3.63 | 45000 | 8000*3000*2500 | ||||
| YLW-6000SCIII | 500 | 300 | 389 | 3.9 | 60000 | 9000*3100*3000 | ||||
| YLW-7000SCIII | 600 | 340 | 469 | 4.2 | 70000 | 10000*3200*3300 |
With 40 years of factory history,660,000 square meters of factory area,580 million total assets,500 +service team etc.hengxin Boiler guarantees the real interests of customersthrough national safety and quality inspection institutions at all levels.
With 336 production equipments and more than 300 production models,hengxin devotes itself to scientific and technological innovation and iscommitted to providing customers with the most energy-saving and efficientboiler equipment,and each boiler is directly exported by hengxin manufacturers,with higher cost-effective performance in the boiler market.
hengxin Boiler adopts the latest intelligent boiler cloud platform system,realizes the overall control of the boiler operation state,and truly realizes worry-free ideal state.
hengxin Boiler,as a high-tech boiler manufacturer,is dedicated to making boilerswith services of R&D innovation,design customization,production specialization,sales refinement,installation standardization,renovation proficiency,EPC project comprehensiveness.
Technical consultation in 30 minutes,clear plan in 2 hours,dispatchof engineers at home and abroad in 24-72 hours,free maintenancewithin 12 months since shipment.
Some products are available in stock.Boilers under 15 tons can be delivered in 15 days,boilers with 15-25 tons can be delivered in 20 days andboilers with 25 tons or more can be delivered in 35 days.
